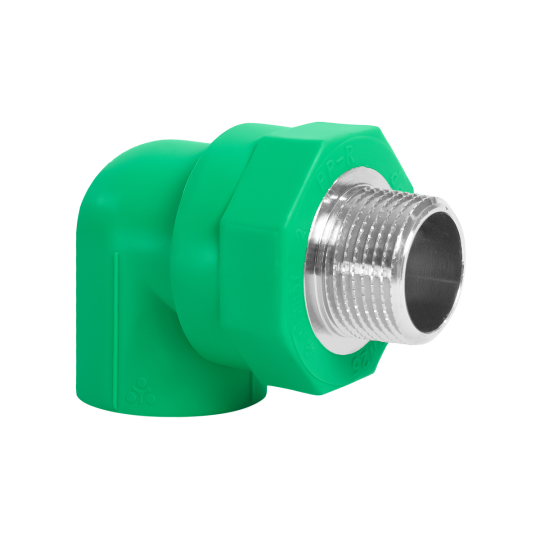

CO 90 REN NGOÀI PPR
Giá: Liên hệ

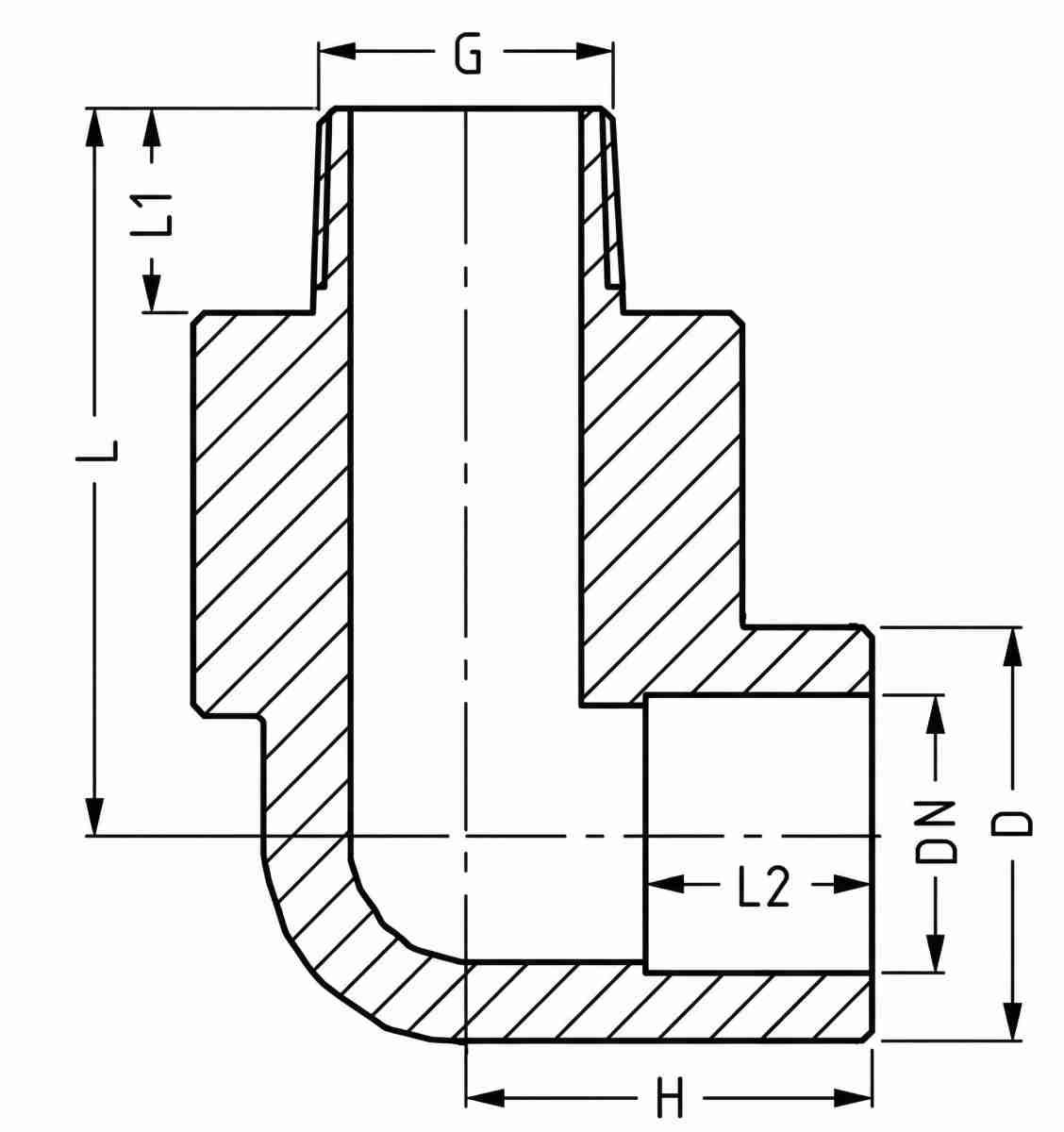

| CO 900 REN NGOÀI (Male Thread 900 Elbow) | |||||||
| DN | G | D | L | L1 | L2 | H | PN |
| (mm ) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 20 | 1/2" | 28 | 35 | 13.7 | 16 | 28 | 25 |
| 25 | 1/2" | 35 | 38.5 | 13.7 | 18 | 32 | 25 |
| 25 | 3/4" | 35 | 40 | 14.5 | 18 | 32 | 25 |
| 32 | 1" | 44 | 50 | 19.5 | 19 | 37.5 | 25 |
| CO 900 REN NGOÀI (Male Thread 900 Elbow) | |||||||
| DN | G | D | L | L1 | L2 | H | PN |
| (mm ) | (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |
| 20 | 1/2" | 28 | 35 | 13.7 | 16 | 28 | 25 |
| 25 | 1/2" | 35 | 38.5 | 13.7 | 18 | 32 | 25 |
| 25 | 3/4" | 35 | 40 | 14.5 | 18 | 32 | 25 |
| 32 | 1" | 44 | 50 | 19.5 | 19 | 37.5 | 25 |
